Precision Cylinder SET VC / VSR-10

「Precision Cylinder SET VC / VSR-10」 Product Code:640086

VACUUM SYSTEM to let fly far away... Precision Cylinder SET VC includes... Precision Cylinder Taper Cylinder Head + VC Piston(No.631296) Spring Guide for VC Piston(No.631435) ※attach bore-diameter Spring. "Precision Cylinder" Internal diameter 22mm(same as the normal ), Made of SUS304. Inner diameter torelance ±1/100mm. Processed laser welding & fixed by parallel pin.

Taper Cylinder Head
Made of SUS303. The nozzle has longer than normal and tapered inner. They make stable output.
To keep airtight, this nozzle has O-ring.
This item can be attached with Normal cylinder, but Normal cylinder has low-thread and it cannot fix tightly.
We cannot tell whether they can attach or not, so we don't recommend attachment with Normal Cylinder.

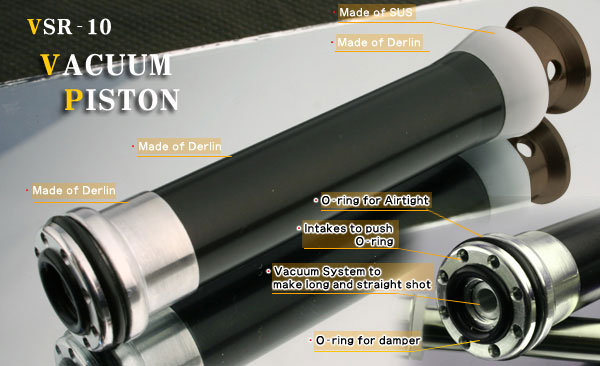

Vacuum Piston
The body: Made of Duralmin.
The Ring: Made of Derlin.
The End: Made og Stainless.
We use most suitable materials for each parts, so this piston has high durability.
VC Piston's head mounts Vacuum System.
This system can resolve negative pressure and make long and straight shot.
More details is here ...
* VC Piston needs a little longer time to airproof than HD Piston.
It is the difference (Velocity) between them.

Spring Guide for VC Piston
Made of Stainless and Polished,so it make smooth pump-action.
It has a thrust ring that made of derlin.
This spring is best for HD Piston. The shuft is shorter than Spring Guide for HD Piston.

※VSR-10 has Unique trigger system,so it may caused fragile of cocking.Please check here.

Sale \ 18,144
We deem to get your agreement for the below policy when you place an order.

Please read the below policy
We deem to get your agreement for the below policy when you place an order.
○We couldn't assure the trouble with your lack of skill.
○It may be required to adjust to fit because our custom parts reduce the clearance of normal parts to lead the best condition.
○Do not use the 3rd party products.Because we design with Normal parts or PDI-products.
　If you ignore our rule & breake up your guns、we couldn’t be responsible.
○It is possible to change the spec or design.
