「Precision Palsonite Cylinder Set HD / VSR-10」
PRODUCT CODE:645739
X-FIRE Logo

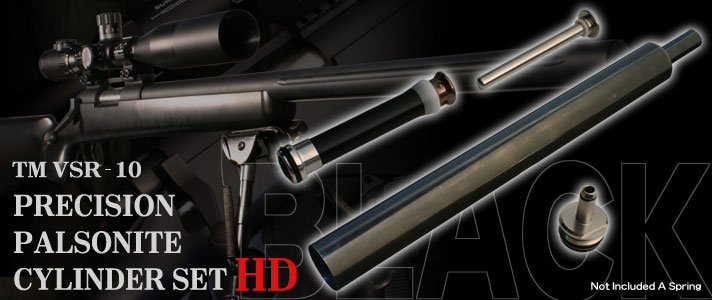

VSR Precision Cylinder SET

For Tokyo Marui VSR-10.

Precision Palsonite Cylinder SET HD includes...

Precision Palsonite Cylinder
Taper Cylinder Head+
HD-Piston(No.631251)
SP-Guide(No.631428)
※Please use with fat diameter spring as SPR,SS,VSR series.

Using this cylinder,the piston will get more speed & you'll get stable output.
We processed the Palsonite to precision cylinder to be less friction between a piston & cylinder.
So you'll get more smooth action & that gives stable & high power performance.

Internal diameter 22mm(same as the normal ),
Made of SUS304. Inner diameter torelance ±1/100mm. Processed laser welding & fixed by parallel pin.
※VSR-10 has Unique trigger system,so it may caused fragile of cocking. Please check here.

Taper Cylinder Head +
Made of SUS303. The nozzle is longer than normal and has tapered line backside. They make stable output.
To keep airtight, this nozzle has O-ring.
This item can be attached with Normal cylinder, but Normal cylinder has low-thread and it cannot fix tightly.
We cannot tell whether they can attach or not, so we don't recommend attachment with Normal Cylinder.
VSR Precision Cylinder SET

Hard Piston
This piston has NO VC,so it's a simple piston but the simple is superior to durability.
The body: Made of Duralmin.
The Ring: Made of Derlin.
The End: Made og Stainless.
We use the most suitable material for each parts, so this piston has high durability.
Hard Piston can make more velocity than Vacuum Piston because of its hight airtight.
VSR Precision Cylinder SET

Spring Guide
Made of Stainless steel and Polished,so it makes smooth action.
It has a thrust ring that made of derlin.
This spring guide is the best for HD Piston. The shuft is longer than Spring Guide for VC Piston.
Please use with fat Dia.Spring.

VSR Precision Cylinder SET

※VSR-10 has Unique trigger system,so it may caused fragile of cocking. Please check here.

Sale \ 20,160
We deem to get your agreement for the below policy when you place an order.
Qty

Please read the below policy
We deem to get your agreement for the below policy when you place an order.
○We couldn't assure the trouble with your lack of skill.
○It may be required to adjust to fit because our custom parts reduce the clearance of normal parts to lead the best condition.
○Do not use the 3rd party products.Because we design with Normal parts or PDI-products.
　If you ignore our rule & breake up your guns、we couldn’t be responsible.
○It is possible to change the spec or design.
