Precision Cylinder Compo Set VC / TM VSR-10

「Precision Cylinder Compo Set VC / TM VSR-10」 PRODUCT CODE:645708

VACUUM SYSTEM to let fly far away... Precision Cylinder Compo SET VC includes... Precision Cylinder Taper Cylinder Head + Barikaru-Compo Piston VC(No.630841) Spring Guide for VC Piston(No.631435) ※attach bore-diameter Spring. "Precision Cylinder" Internal diameter 22mm(same as the normal ), Made of SUS304. Inner diameter torelance ±1/100mm. Processed laser welding & fixed by parallel pin.

Taper Cylinder Head
Made of SUS303. The nozzle has longer than normal and tapered inner. They make stable output.
To keep airtight, this nozzle has O-ring.
This item can be attached with Normal cylinder, but Normal cylinder has low-thread and it cannot fix tightly.
We cannot tell whether they can attach or not, so we don't recommend attachment with Normal Cylinder.

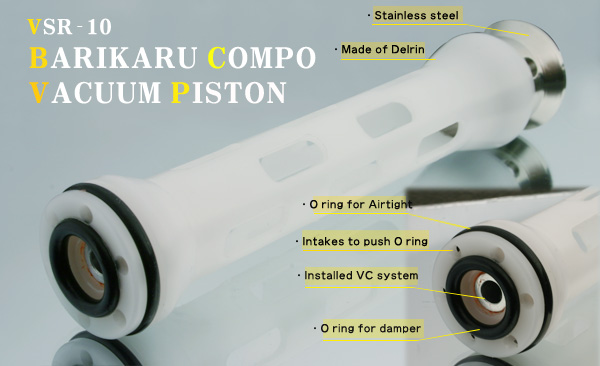

Barikaru Compo Piston VC
The body & Ring are made of Delrin all machined.
The End: Made og Stainless steel.

Delrin is not only highly durable but also really light.
This piston makes fps higher usig with lower spring because light weight,so rapidly gain speed.
Please keep your mind this piston is limited lower spring as VSR110,130,140.

VC Piston's head mounts Vacuum System.
This system can resolve negative pressure and make long and straight shot.
More details is here ...
* VC Piston needs a little longer time to airproof than HD Piston.
It is the difference (Velocity) between them.

[Compared to weight]
From Left,VSR origin(19g)、Barikaru Compo(25g)、HD Piston(42g)。
Delrin has light ,but haighly durable.

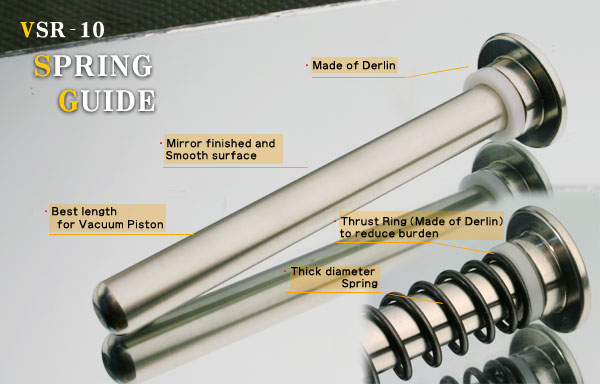

Spring Guide for VC Piston
Made of Stainless and Polished,so it make smooth pump-action.
It has a thrust ring that made of derlin.
This spring is best for HD Piston. The shuft is shorter than Spring Guide for HD Piston.

※VSR-10 has Unique trigger system,so it may caused fragile of cocking.Please check here.

Sale \ 18,396
We deem to get your agreement for the below policy when you place an order.

Please read the below policy
We deem to get your agreement for the below policy when you place an order.
○We couldn't assure the trouble with your lack of skill.
○It may be required to adjust to fit because our custom parts reduce the clearance of normal parts to lead the best condition.
○Do not use the 3rd party products.Because we design with Normal parts or PDI-products.
　If you ignore our rule & breake up your guns、we couldn't be responsible.
○It is possible to change the spec or design.
