「REAL OUTER BARREL LMT 10.5" SIZE/ TM AEG M4A1」
PRODUCT CODE:646491
X-FIRE Logo

リアルアウターバレルLMT10.5"サイズ/TM AEG M4A1

For Tokyo Marui AEG M4A1.
※Be careful when this product is built in. Please peruse「ATTENTION」 prepared on this page.

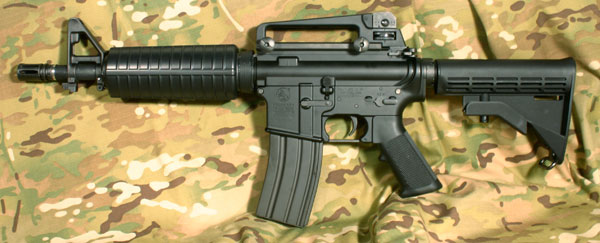

Popular 10.5 inch barrel appears

Very popular short barrel.This time, we manufactured one of the sizes of 10.5 inches that the LMT Co. was marketing.
This size is imaged based on the product image of the LMT Co.

All CNC machined&Black Alumite (Honing) processed
This highly accurate barrel was produced by the race and the mealing processing by using the multitasking machine.
It is finished up by sandblasting process & honing process.

Next generation's AEG M4A1 has Peculiar circumstances
The feature of next generation's M4A1 is that the battery is in the hand guard because the system that generates recoilshock is in the stock.

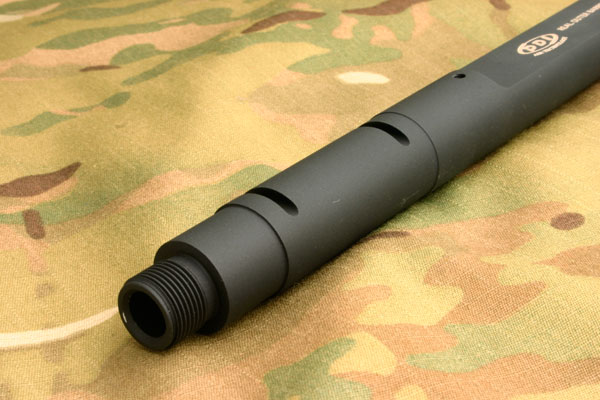

Therefore, two places are cut unlike SOPMOD in the barrel outer.

Highly accurate inside diameter is achieved by the cold forging
The feature of made by PDI the outer barrel appears to not only the general view but also the inside diameter accuracy.

Of course , it is 14mm CWW specification , but...
Actually, pure hider ring can not pass when the outside diameter is brought close to 14mm too much.
Height has been lowered a little also made by PDI.

The size of the inner barrel is P90.
In a past, short size (285mm), it dashes out from the muzzle. In G36C,P90 size (247mm), it doesn't overflow, and the best size.

全長

M4
Please pay attention to the wear-out of the center part of the barrel. Thus, if the front sight is installed, rubbing is slightly caused. It is possible to suppress rubbing to the minimum when doing as oil is blown.

M4

M4

M4

M4
The laser stamp is given.

Difference point with pure barrel 1
The function to have omitted part is provided in consideration of the cost performance.

"Hole that fixes front sight"

Past M4 did not have the screw. We canceled it, because we had judged that there was no problem in past method for fixing.

穴

Difference point with pure barrel 2

The position of the nut was made to be advanced a little in consideration of shaking of the hand guard in the state not remodeled. As a result, the rigidity rises and the fit feeling is improved.

穴

M3 screw that cannot be confirmed

The M3 screw on the reception desk side doesn't understand the usage as of July, 2009.It can be guessed that it is a hole to fix PEQ, RIS , and RAS, that will be put on the market in the future. But we cannot say it is certain. Therefore, please understand that It cannot be asserted that it is possible to correspond to The development in the future.

穴

attention

A considerable technology and the knack are necessary to take M4 faction apart. The maximum problem is "Difficulty of taking the around the neck apart. Whether this "Barrel lock ring" can be removed is a point. Though it is unconfirmed, it seems to be easy to remove the M4 series since second lot comparatively. Though we make and opened a special wrench...
レンチ
Then, the ring came to come off. However, it is not possible to be relieved still for a while.
If power is put too much, it is transformed because the lock is forcibly released.
The important one is "Barrel lock ring" and "barrel base".

リング ナット
"Barrel lock ring" "Barrel base"


These influences the strength of the main body and the barrel directly. When these are transformed, strength around the neck is lost, and It becomes impossible to return to original as long as parts are not exchanged. Please do carefully. It might be transformed even if it does carefully.
Because there is no strength in the material.
Especially, because barrel base is made by zincky and has no thickness, it is transformed indeed often. It produces it later because it is thought that the custom parts are necessary for this.

Next, please note "barrel nut" related to the fixation of the hand guard.
The M3 screw to fix the nut of the real outer barrel that PDI made, the position is adjusted.
As a result, the hand guard side is cut down because it rubs against the nut when the hand guard is set.
However, trouble is not caused by this wear-out. It was able to become easy to insert.
干渉

When there is no strength on the neck:
When there is no strength on the neck by the transformation and damage, the method of placing a thin spacer between barrel base and barrel lock ring is effective. Some shaking can be decreased by doing so.
スペーサー

When you cannot install the front sight well:
The ditch for the site is cut down a little shallowly.
Please cut down thinly with round stick file when feeling that tightness.
It is more effective that the inside diameter of the front sight is cut down with the emery paper.
溝

Sale \ 5,541
We deem to get your agreement for the below policy when you place an order.
Qty:



Please read the below policy
We deem to get your agreement for the below policy when you place an order.
○We couldn't assure the trouble with your lack of skill.
○It may be required to adjust to fit because our custom parts reduce the clearance of normal parts to lead the best condition.
○Do not use the 3rd party products.Because we design with Normal parts or PDI-products.
 If you ignore our rule & breake up your guns、we couldn’t be responsible.
○It is possible to change the spec or design.
