「04 Inner Barrel(For PDI Chamber)/TYPE96」
PRODUCT CODE : 3603
X-FIRE Logo
This barrel has not Hop Up Chamber.Please note.

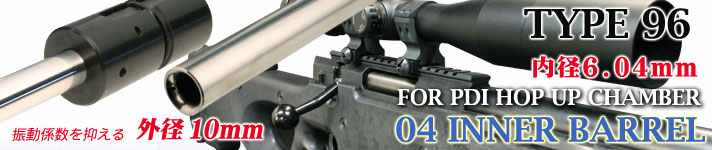

04 Inner Barrel
For Maruzen APS TYPE96 PDI's Hop Up Chamber.This barrel length is 495mm.
The internal diameter is 6.04mm、the tolerance is ±0.002mm、the outer diameter is 10mm、Made of SUS304 which is used the Cold Hammering Way. Improved Muzzle & Barrel spacers are came with this barrel.We suggest that the most effective barrel is outer Dia.10mm cause that Dia.is fit to our Hop Up Chambers directly without Almi Ring.

New diameter is real 6.04mm

Our new diameter "6.04mm" is the most prescise barrel in this industry as our 01 Inner Barrel.
This is a heavy weight barrel
The outer diameter 8.55mm is a really usefull cause the most popular maker Tokyo Marui use that size.But if you focus the accuracy,the barrel weight is very important to reduce the libration.
As I said,this barrel is 10mm outer(except rear) ,so it may be the best superior accuracy of any other inner barrels .
Barrel spacers& Muzzle cap
Made of Derlin all machined by CNC.These spacers have 2 O-rings inside to keep the best position against the inner barrel. Muzzle cap's inside is expanded to fit the 04 large outer diameter.
Barrel Spacer for 04-TYPE96
Sale \1,102
Qty
Muzzle Cap for 04-TYPE96
Sale \1,470
Qty
For PDI's Hop Up Chamber
This barrel is for PDI's Hop Up Type96 chamber. The rear outer Dia.is just 8.55mm to fit the chamber.If you built in,you'll find it's easier adjustment to ballistic trajectory of right & Left.
Sale 11,445 Yen
We deem to get your agreement for the below policy when you place an order.
Qty

Please read the below policy
We deem to get your agreement for the below policy when you place an order.
○We couldn't assure the trouble with your lack of skill.
○It may be required to adjust to fit because our custom parts reduce the clearance of normal parts to lead the best condition.
○Do not use the 3rd party products.Because we design with Normal parts or PDI-products.
 If you ignore our rule & breake up your guns、we couldn’t be responsible.
○It is possible to change the spec or design.
